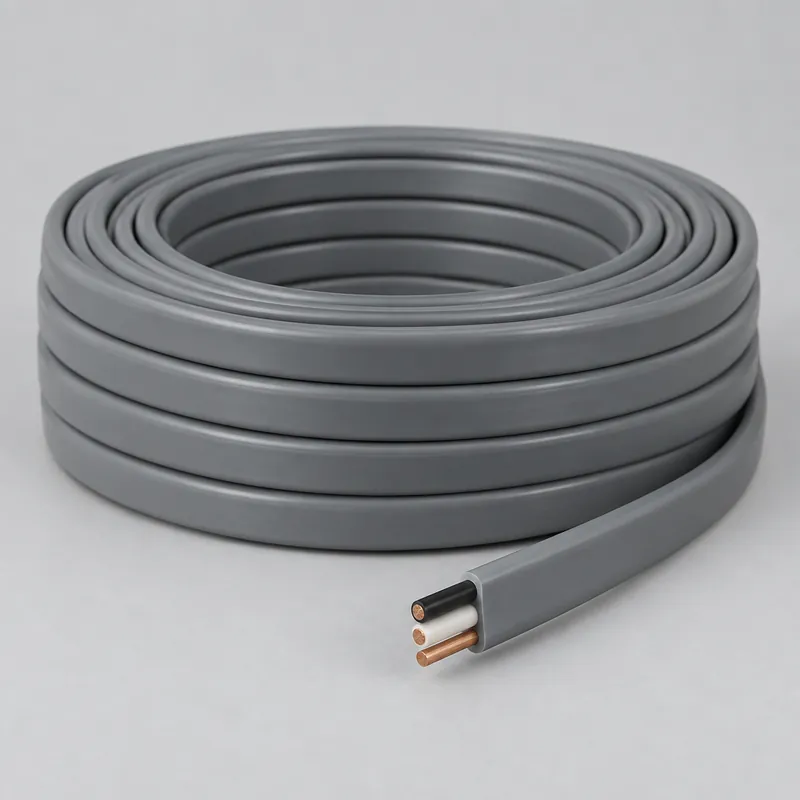

6/2 UF-B Copper Cable

Underground feeder cable for direct burial branch circuits, with conductors molded into a solid PVC jacket. Rated 600 V, 90 C.

Per foot at 25 ft$3.60/ft

Spools ship by Thu, Oct 8. Cut lengths ship by Fri, Oct 9.

For an order placed now. Orders after 12 PM ET, and on weekends and holidays, count from the next business day.

You get a tracking number by email the day it ships.

Free UPS Ground shipping from $499 to the lower 48. A reel over 150 lb ships by freight, charged in the cart.

Cut wire is final sale. Uncut spools can come back within 30 days for a 15 percent restocking fee. Returns policy

Questions about this wire?

Request a callback

Ampacity	55 A (NEC Table 310.16, 60 C column)
Largest breaker	55 A, or the next standard size up where NEC 240.4(B) allows
Voltage drop at 100 ft	5.40 V, 2.3 percent at 55 A and 240 V single phase
Run length for 3 percent drop	About 130 ft one way at 55 A and 240 V

What breaker can 6/2 UF-B Copper Cable go on?: Its ampacity is 55 A (60 C column of NEC Table 310.16). The breaker can be that size, or the next standard size up where NEC 240.4(B) allows it. Derate first for more than three current-carrying conductors or high ambient heat.
How far can I run it before voltage drop is a problem?: At 55 A on a 240 V single phase circuit, about 130 ft one way keeps the drop at 3 percent, the figure an informational note to NEC 210.19(A) suggests for branch circuits. Try other loads in the voltage drop calculator.
Can it be buried directly in the ground?: Yes. It is rated for direct burial; the minimum cover is in NEC Table 300.5 (24 in. for direct burial under the general condition).
Can I buy it by the foot?: Yes, cut to length in whole feet from 25 ft, or on 125, 250, 500, 1,000 ft spools. Cut wire is final sale; uncut spools can be returned within 30 days.

Type	UF-B
Gauge	6/2
Conductors	2
Conductor	copper
Stranding	stranded
Insulation	PVC
Voltage rating	600 V
Temperature rating	90 C
Listing	UL Listed, RoHS Compliant
Ampacity, NEC Table 310.16, 60 C column	55 A
Jacket color	Gray
Sold by the foot	From 25 ft to 5,000 ft, in whole feet
Standard spools	125, 250, 500, 1,000 ft
Ships in	1 to 2 business days from the order day

Insulation, ratings, listing and weight are confirmed from the manufacturer's sheet with your quote.

Spec sheet on request.

What is the smallest cut?: 25 ft for this product, in whole feet, up to 5,000 ft per row. Each length ships on its own coil.
Can I return cut wire?: No. Cut wire is final sale. Uncut, unopened spools and boxes can come back within 30 days for a 15 percent restocking fee.
When does it ship?: The ship dates beside Add to cart are for this product and count business days in Eastern time. You get a tracking number by email the day it ships.
